Fabarm
XLR5

A gas-operated semi-automatic for game and clay shooting

XLR5XLR 5 / XLRXLR5 Velocity / Waterfowler / XLR Chesapeake · US

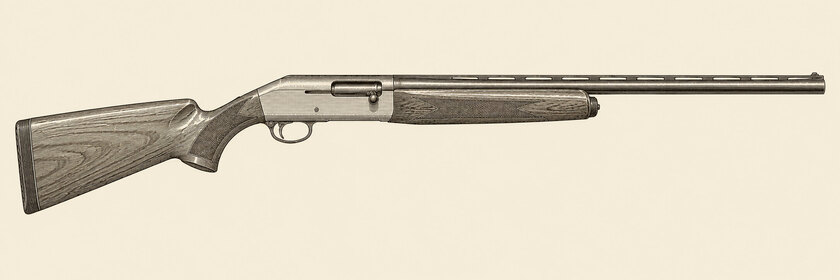

Drawing of a Fabarm XLR5 from the right: one barrel, a pale receiver with a right ejection port and bolt handle, a wooden pistol-grip stock and a wooden fore-end.
Drawing: 12 ga oiled field, 28 in, right side

he XLR5 is Fabarm's gas-operated , made in hunting versions and, as the Velocity, for competition.1, 2, 3 The US Velocity AR has an adjustable , a Titanium silver frame and an adjustable walnut .4 The Velocity FR has a flat rib, a black anodised frame and a TRIWOOD finish.5

The Pulse system regulates reloading through a piston made of stainless steel and polymer.1 Gas pressure compresses the polymer, changing its friction as the load changes.1 Field and target guns have different port sizes and piston weights, and Fabarm forbids swapping their pistons.6

Specifications

12-bore · game

Made inTravagliato, Italy7, 8
Introduced20089
Bore12-bore
Chambers76 mm (3 in)
Barrels24 in
Chokesfixed
Weight2.9 kg (6 lb 6 oz; catalogue, 24 in)

10 Compare specifications

Specifications

ConfigurationBoreChambersBarrels, inGradeChoke systemWeightMarketsStockFinish
Velocity LR1212-bore70 mm (2¾ in)30, 32Velocity LREXIS HP; removable; 5 tubespistol grip; adjustable comb; 376.0 mm pulltitanium action
Velocity Reverse, left-handed1312-bore70 mm (2¾ in)30, 32Velocity ReverseEXIS HP; removable; 5 tubespistol grip; left-handed; adjustable comb; 376.0 mm pulltitanium action
Velocity1412-bore70 mm (2¾ in)30, 32VelocityEXIS HP; removable; 5 tubespistol grip; adjustable comb; 376.0 mm pulltitanium action
Game
Game1012-bore76 mm (3 in)24Oiled Accuracyfixed2.9 kg (6 lb 6 oz; catalogue, 24 in)pistol grip; 365.0 mm pulltitanium action
Game1512-bore76 mm (3 in)28, 30Bulrush Max 5INNER HP; removable; 5 tubespistol grip; 368.0 mm pullcamo bulrush action
Game, left-handed1612-bore76 mm (3 in)28, 30, 32Columba Palumbus ReverseINNER HP; removable; 4 tubespistol grip; left-handed; 368.0 mm pullcerakote midnight bronze action
Game1712-bore76 mm (3 in)28, 30, 32Columba PalumbusINNER HP; removable; 4 tubespistol grip; 368.0 mm pullcerakote midnight bronze action
Game1812-bore76 mm (3 in)26, 28, 30Composite AB +INNER HP; removable; 5 tubes368.0 mm pullcerakote armor black action
Game, left-handed1912-bore76 mm (3 in)26, 28, 30Composite AB ReverseINNER HP; removable; 3 tubesleft-handed; 368.0 mm pullcerakote armor black action
Game2012-bore76 mm (3 in)26, 28, 30Composite ABINNER HP; removable; 3 tubes368.0 mm pullcerakote armor black action
Game2112-bore76 mm (3 in)28, 30ForestINNER HP; removable; 5 tubespistol grip; 368.0 mm pullcamo forest action
Game312-bore24, 26, 28, 30OiledINNER HP; removable; 5 tubespistol grip; 365.0 mm pulltitanium action
Game, left-handed2212-bore76 mm (3 in)24, 26, 28, 30ReverseINNER HP; removable; 5 tubespistol grip; left-handed; 365.0 mm pulltitanium action
Game1112-bore76 mm (3 in)28, 30Waterfowler WesternINNER HP; removable; 4 tubespistol grip; 368.0 mm pullcerakote olive drab green action
Game1812-bore76 mm (3 in)24Composite AB + Accuracy368.0 mm pullcerakote armor black action
Game1812-bore76 mm (3 in)35.43Composite AB + Supergoose368.0 mm pullcerakote armor black action
Game1512-bore76 mm (3 in)35.43Bulrush Max 5 XtremeXtreme; fixedpistol grip; 368.0 mm pullcamo bulrush action
Sporting
Sporting4, 2312-bore70 mm (2¾ in)30Velocity AREXIS HP; removable; 5 tubesUSadjustable combTitanium silver action
Sporting5, 2412-bore70 mm (2¾ in)30Velocity FREXIS HP; removable; 5 tubes3.43 kg (7 lb 9 oz; catalogue, 30 in)USpistol gripblack anodised action
Wildfowl
Wildfowl25, 2612-bore76 mm (3 in)28, 30Waterfowler, True Timber ViperINNER HP and EXIS DK; removable; 4 tubes3.175 kg (7 lb 0 oz; catalogue, 30 in)USCerakote olive-drab green action
Wildfowl27, 2812-bore76 mm (3 in)28, 30ChesapeakeINNER HP and one extended tube; removable; 4 tubesUSCerakote Midnight Bronze action

Scroll for more columns.

Identify and date

The serial number is on the receiver, in a position that varies by model.29 Fabarm’s left-handed guns carry the name Reverse.30 The Waterfowler Western has an olive-drab Cerakote frame and a stock finished in True Timber Viper Western.11

Italian proof stamps sit on the rear underside of the barrels and on the .31 Among them, the year stamp records the year of proof.32 On 1 June 2020 the replaced its letter code with the year's last two digits in a rectangle.33, 34, 35

WhereMarkings
Rear underside of the barrels and the actionItalian proof stamps31
ReceiverSerial number; its exact position varies by model29

Proof date

The stamp gives the year of proof. CZ applies up to 31 May 2020, and 20 from 1 June 2020. The later stamp encloses the year’s last two digits in a rectangle.32, 33, 35

Proof date codes

Before you buy

  1. Confirm the before choosing cartridges: the Velocity AR, LR and FR target guns have 2¾-inch chambers, and the Waterfowler 3-inch.36
  2. Make sure the piston matches the gun, field or target; Fabarm forbids swapping them because their porting and piston weights differ.6
  3. Check that replacement parts are made for the XLR5; L4S barrels, stocks, action assemblies and pistons do not interchange with XLR5 parts.37
  4. Inspect the bolt and gas piston for fouling. Fabarm recommends a thorough clean and a thin coat of oil, not heavy lubrication.38
  5. Check the threads and seating; Fabarm calls for a little lubricant and a tight tube, without overtightening.38

History

Fabarm launched the XLR5 at the start of 2008; XLR stands for extra-long range.9 Closer work with Caesar Guerini led to the Velocity in January 2012.39, 40 Fabarm records John Yeiser breaking 25 American targets in 64.14 seconds with an XLR5 Velocity in San Diego on 7 November 2013.41, 23
