Winchester
Model 21

A boxlock double with standard and custom grades

Model 21 · US

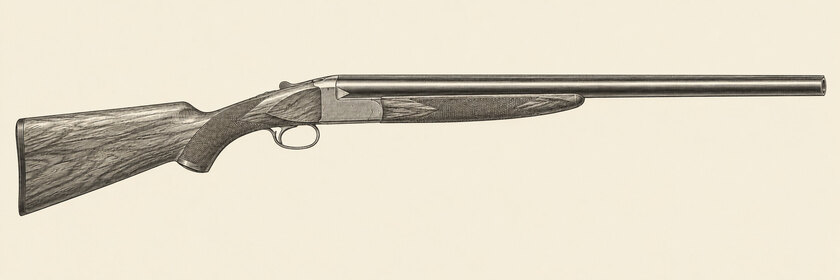

Drawing of a Winchester Model 21 from the right: side-by-side 28-inch barrels, a boxlock action with an arrowhead reinforcement at the breech, a chequered walnut pistol-grip stock, a beavertail fore-end and a single trigger.
Drawing: 12-gauge standard, 28 in, right side

he Winchester Model 21 is a offered in standard and custom grades.1, 2, 3, 4, 5, 6 Its barrels meet the at a flat junction with an exterior arrowhead reinforcement.7 The breech has no extension, and the gun opens through an unusually shallow angle.8, 1

A thick underbolt locks the barrels.8 The tubes join by interlocking dovetails in their integral lumps and are soldered together.1 Winchester developed a selective inertia-operated , but some early guns have double triggers, and splinter fore-ends.9, 10

Specifications

12-bore

LockingThick underbolt; no extension11, 12, 13, 14
Lockwork11, 12, 13, 14
TriggerSelective inertia-operated ; some early guns have double triggers11, 12, 13, 14
EjectorsSome early guns have 11, 12, 13, 14
Introduced193115, 13
Bore12-bore
Chambers76 mm (3 in)
Barrels30, 32 in

16, 17 Compare specifications

Specifications

ConfigurationBoreChambersBarrels, inFore-endGradeYearsMarketsStockFinish
Duck16, 1712-bore76 mm (3 in)30, 32BeavertailDuck1940–1952OtherPistol or straight grip; Beavertail fore-end
Standard1712-bore26, 28, 30, 32BeavertailStandard1931–1959OtherPistol or straight grip; Beavertail fore-end
Standard1716-bore26, 28, 30, 32BeavertailStandard1931–1959OtherPistol or straight grip; Beavertail fore-end
Standard1720-bore26, 28, 30, 32BeavertailStandard1931–1959OtherPistol or straight grip; Beavertail fore-end
Tournament20, 1712-bore26, 28, 30, 32BeavertailTournament1933–1934OtherPistol or straight grip; Beavertail fore-end
Tournament20, 1716-bore26, 28, 30, 32BeavertailTournament1933–1934OtherPistol or straight grip; Beavertail fore-end
Tournament20, 1720-bore26, 28, 30, 32BeavertailTournament1933–1934OtherPistol or straight grip; Beavertail fore-end
Trap21, 1712-bore26, 28, 30, 32BeavertailTrap1932–1959OtherPistol or straight grip; Beavertail fore-end
Trap21, 1716-bore26, 28, 30, 32BeavertailTrap1932–1959OtherPistol or straight grip; Beavertail fore-end
Trap21, 1720-bore26, 28, 30, 32BeavertailTrap1932–1959OtherPistol or straight grip; Beavertail fore-end
Skeet22, 17, 2312-bore26, 28, 30, 32BeavertailSkeet1936–1959OtherPistol or straight grip; Beavertail fore-end
Skeet22, 17, 2316-bore26, 28, 30, 32BeavertailSkeet1936–1959OtherPistol or straight grip; Beavertail fore-end
Skeet22, 17, 2320-bore26, 28, 30, 32BeavertailSkeet1936–1959OtherPistol or straight grip; Beavertail fore-end
Skeet22, 17, 2328-bore26, 28, 30, 32BeavertailSkeet1936–1959OtherPistol or straight grip; Beavertail fore-end
Magnum24, 17, 1612-bore76 mm (3 in)BeavertailMagnum1953–1959OtherPistol or straight grip; Beavertail fore-end
Magnum24, 17, 1620-bore76 mm (3 in)BeavertailMagnum1953–1959OtherPistol or straight grip; Beavertail fore-end
Custom Built / Deluxe2512-boreCustom Built / Deluxe1933–1959Other
Custom Built / Deluxe2516-boreCustom Built / Deluxe1933–1959Other
Custom Built / Deluxe2520-boreCustom Built / Deluxe1933–1959Other
Custom Built / Deluxe2528-boreCustom Built / Deluxe1933–1959Other
Custom Built / Deluxe25.410Custom Built / Deluxe1933–1959Other
Custom26, 2712-boreChequeredCustom1960–1981OtherPistol or straight grip; Chequered fore-endSmall amount of frame scroll engraving
Custom26, 2716-boreChequeredCustom1960–1981OtherPistol or straight grip; Chequered fore-endSmall amount of frame scroll engraving
Custom26, 2720-boreChequeredCustom1960–1981OtherPistol or straight grip; Chequered fore-endSmall amount of frame scroll engraving
Custom26, 2728-boreChequeredCustom1960–1981OtherPistol or straight grip; Chequered fore-endSmall amount of frame scroll engraving
Custom26, 27.410ChequeredCustom1960–1981OtherPistol or straight grip; Chequered fore-endSmall amount of frame scroll engraving
Pigeon28, 2712-boreCarved to style APigeon1960–1981OtherCarved to style A fore-end21-6 pattern engraving
Pigeon28, 2716-boreCarved to style APigeon1960–1981OtherCarved to style A fore-end21-6 pattern engraving
Pigeon28, 2720-boreCarved to style APigeon1960–1981OtherCarved to style A fore-end21-6 pattern engraving
Pigeon28, 2728-boreCarved to style APigeon1960–1981OtherCarved to style A fore-end21-6 pattern engraving
Pigeon28, 27.410Carved to style APigeon1960–1981OtherCarved to style A fore-end21-6 pattern engraving
Grand American29, 27, 2812-boreCarved to style BGrand American1960–1981OtherCarved to style B fore-end21-6 pattern with gold inlays engraving
Grand American29, 27, 2816-boreCarved to style BGrand American1960–1981OtherCarved to style B fore-end21-6 pattern with gold inlays engraving
Grand American29, 27, 2820-boreCarved to style BGrand American1960–1981OtherCarved to style B fore-end21-6 pattern with gold inlays engraving
Grand American29, 27, 2828-boreCarved to style BGrand American1960–1981OtherCarved to style B fore-end21-6 pattern with gold inlays engraving
Grand American29, 27, 28.410Carved to style BGrand American1960–1981OtherCarved to style B fore-end21-6 pattern with gold inlays engraving

Scroll for more columns.

Identify and date

Tournament, , and Duck guns carry their grade name on the plate.30, 4, 5, 3 Custom Built / Deluxe guns carry CUSTOM BUILT on the or DELUXE on the plate.31 The Magnum has no grade mark on its plate.32

Standard-grade guns have a chequered beavertail and a pistol- or walnut .2 Some early guns instead have double triggers, and a splinter .10 CSMC also makes a 20- Model 21 , a gun Winchester did not make.33

WhereMarkings
Bottom of Tournament plateTOURNAMENT20
, and Duck plates, and DUCK respectively34
Custom Built / Deluxe or plateCUSTOM BUILT on the or DELUXE on the plate25

CSMC searches its archives for the original specification and delivery details of guns bought from CSMC, including the Model 21 .35 Contact the maker

Before you buy

  1. Have a specialist test the ; CSMC lists malfunctions among its Model 21 repairs.36
  2. Have the ribs inspected for looseness; the factory repair centre offers to strip and relay loose ribs.37, 38
  3. Establish the type before choosing cartridges: screw-in suit steel shot, but Outdoor Life describes bored- Model 21s as unsuitable for steel.39
  4. Check that the grade marks match the gun's configuration: Tournament, and guns have their own marks, and some early guns have double triggers and .30, 4, 5, 10
  5. Ask the factory repair centre about parts and replacement barrels before you commission work; it lists original parts and new barrels for the Model 21.38, 40
  6. To date a gun, seek its original factory record; the Winchester Arms Collectors Association places Model 21 records at Cody, and Winchester warns that serial-year tables are approximate.41, 42, 43

History

Winchester introduced the Model 21 in 1931.44 The Duck grade arrived in 1940 with a three-inch , followed by the Magnum in 1953.3, 32 In 1960 Winchester restricted the gun to custom orders.45

The custom-shop grades of 1960–1981 were Custom, Pigeon and Grand American.46, 6, 47, 48 Winchester stopped taking Model 21 orders in 1991.9 In 1995 CSMC bought the Winchester Custom Shop for the Model 21.49

Custom-shop grades

1960–1981. Custom, Pigeon and Grand American grades.50

DateChangeObservable feature
1940Duck enters the range16DUCK on the plate and a three-inch
1953Magnum enters the range51No grade mark on the plate
1960The Model 21 becomes available only to custom order52, 50Custom, Pigeon and Grand American finishes
