Browning
Maxus

A gas-operated semi-automatic with a lever-fastened fore-end, in field, sporting and wildfowling forms

Maxus Hunter · USMaxus Sporting · USMaxus Wicked Wing · US

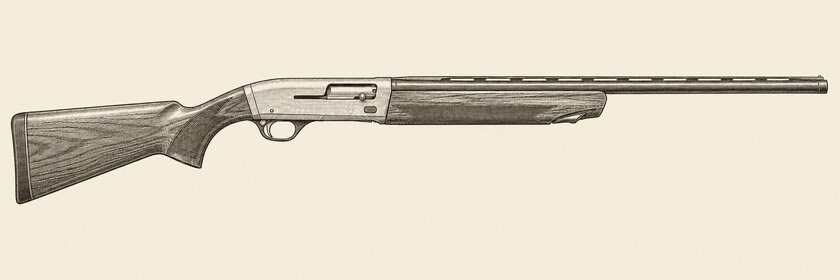

Drawing of a Browning Maxus from the right: one barrel with a top rib, a lightly hatched receiver with a right ejection port and bolt handle, a walnut stock, a fore-end with its front underside latch and one trigger.
Drawing: 12-gauge field, 28 in, right side

he Browning Maxus is a offered in field, sporting and wildfowling versions.1, 2, 3, 4 Instead of a screw-on magazine cap, a Speed Lock lever secures the .5, 6 Wicked Wing Tungsten guns have an oversize bolt release and extended Goose Band tubes.7

The gun works on Browning’s Power Drive gas system.1 The safety button sits at the rear of the guard and shows a red band on the left when it is off.8 Barrels come in 3-inch and 3½-inch classes, and the manual forbids exchanging barrels between them.9

Specifications

12-bore

LockworkPower Drive 1, 8
TriggerSafety button at the rear of the guard1, 8
Made inViana do Castelo, Portugal10, 11
Introduced200912, 13
Bore12-bore
Chambers89 mm (3½ in)
Barrels26 in
ChokesInvector-Plus Flush; removable; 4 tubes
Weight3.203 kg (7 lb 1 oz; catalogue, 26.0 in)

14, 15 Compare specifications

Specifications

ConfigurationBoreChambersBarrels, inRib, mmGradeChoke systemYearsWeightMarketsStockFinish
All Purpose Hunter - Mossy Oak Break-Up Country14, 1512-bore89 mm (3½ in)266.35All Purpose Hunter - Mossy Oak Break-Up CountryInvector-Plus Flush; removable; 4 tubes3.203 kg (7 lb 1 oz; catalogue, 26.0 in)USMOBUC action
A-TACS AU (Arid/Urban)16, 1712-bore89 mm (3½ in)286.35A-TACS AU (Arid/Urban)Invector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USA-TACS AU action
A-TACS AU (Arid/Urban)18, 1712-bore89 mm (3½ in)266.35A-TACS AU (Arid/Urban)Invector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USA-TACS AU action
Hunter Maple19, 2012-bore76 mm (3 in)306.35Hunter MapleInvector-Plus Flush; removable; 3 tubes3.203 kg (7 lb 1 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade AA
Hunter Maple21, 2012-bore76 mm (3 in)286.35Hunter MapleInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade AA
Hunter Maple22, 2012-bore76 mm (3 in)266.35Hunter MapleInvector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 26.0 in)USMatte Nickel action; wood grade AA
Realtree Timber23, 2412-bore89 mm (3½ in)266.35Realtree TimberInvector-Plus Flush; removable; 3 tubes3.118 kg (6 lb 14 oz; catalogue, 26.0 in)USRTT action
Realtree Timber25, 2412-bore89 mm (3½ in)286.35Realtree TimberInvector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 28.0 in)USRTT action
Rifled Deer - Mossy Oak Break-Up Country26, 2712-bore76 mm (3 in)22Rifled Deer - Mossy Oak Break-Up Country3.26 kg (7 lb 3 oz; catalogue, 22.0 in)USMOBUC action
Sporting Carbon Fiber28, 2912-bore76 mm (3 in)28Sporting Carbon FiberInvector-Plus Flush; removable; 5 tubes3.147 kg (6 lb 15 oz; catalogue, 28.0 in)USCarbon Fiber Dip action
Sporting Carbon Fiber30, 2912-bore76 mm (3 in)30Sporting Carbon FiberInvector-Plus Flush; removable; 5 tubes3.175 kg (7 lb 0 oz; catalogue, 30.0 in)USCarbon Fiber Dip action
Sporting Golden Clays — AAAA Maple31, 3212-bore76 mm (3 in)28Sporting Golden Clays — AAAA MapleInvector-Plus Flush; removable; 5 tubes3.26 kg (7 lb 3 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade AAAA
Sporting Golden Clays — AAAA Maple33, 3212-bore76 mm (3 in)30Sporting Golden Clays — AAAA MapleInvector-Plus Flush; removable; 5 tubes3.289 kg (7 lb 4 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade AAAA
Sporting Golden Clays — Maple34, 35, 3212-bore76 mm (3 in)28Sporting Golden Clays — MapleInvector-Plus Flush; removable; 5 tubes3.26 kg (7 lb 3 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade AAA
Sporting Golden Clays — Maple36, 37, 3212-bore76 mm (3 in)30Sporting Golden Clays — MapleInvector-Plus Flush; removable; 5 tubes3.289 kg (7 lb 4 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade AAA
Sporting Golden Clays38, 3912-bore76 mm (3 in)28Sporting Golden ClaysInvector-Plus Flush; removable; 5 tubes3.26 kg (7 lb 3 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade Grade III
Sporting Golden Clays40, 3912-bore76 mm (3 in)30Sporting Golden ClaysInvector-Plus Flush; removable; 5 tubes3.289 kg (7 lb 4 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade Grade III
Stalker41, 4212-bore76 mm (3 in)266.35StalkerInvector-Plus Flush; removable; 3 tubes3.118 kg (6 lb 14 oz; catalogue, 26.0 in)USMatte Black action
Stalker43, 4212-bore76 mm (3 in)286.35StalkerInvector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USMatte Black action
Stalker44, 4212-bore89 mm (3½ in)266.35StalkerInvector-Plus Flush; removable; 3 tubes3.118 kg (6 lb 14 oz; catalogue, 26.0 in)USMatte Black action
Stalker45, 4212-bore89 mm (3½ in)286.35StalkerInvector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 28.0 in)USMatte Black action
One4612-bore76 mm (3 in)28, 306OneInvector Plus; removable; 3 tubes2020pistol grip; 368 mm pull
Black Gold4612-bore76 mm (3 in)26, 28, 306Black GoldInvector Plus; removable; 6 tubes2020pistol grip; 368 mm pull
Sporting Black Carbon Fiber4612-bore76 mm (3 in)28, 30Sporting Black Carbon FiberInvector Plus; removable; 5 tubes2020pistol grip; 368 mm pull
Ultimate Ducks Composite4712-bore89 mm (3½ in)28, 306Ultimate Ducks CompositeInvector Plus; removable; 6 tubes2020pistol grip; 368 mm pull
Camo Max 54712-bore89 mm (3½ in)28, 306Camo Max 5Invector Plus; removable; 6 tubes2020pistol grip; 368 mm pull
Camo A-TACS4712-bore89 mm (3½ in)28, 306Camo A-TACSInvector Plus; removable; 6 tubes2020pistol grip; 368 mm pull
Game
Game48, 4912-bore89 mm (3½ in)266.35All-Purpose, Mossy Oak® Break-Up InfinityInvector-Plus Flush; removable; 4 tubes3.203 kg (7 lb 1 oz; catalogue, 26.0 in)USMOINF action
Game50, 5112-bore89 mm (3½ in)266.35All Purpose Hunter A-TACS FG (Foliage/Green)Invector-Plus Flush; removable; 4 tubes3.203 kg (7 lb 1 oz; catalogue, 26.0 in)USA-TACS FG action
Game52, 5312-bore76 mm (3 in)266.35HunterInvector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 26.0 in)USMatte Nickel action; wood grade Grade I
Game54, 5312-bore76 mm (3 in)286.35HunterInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade Grade I
Game55, 5312-bore76 mm (3 in)306.35HunterInvector-Plus Flush; removable; 3 tubes3.203 kg (7 lb 1 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade Grade I
Game56, 5312-bore89 mm (3½ in)266.35HunterInvector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 26.0 in)USMatte Nickel action; wood grade Grade I
Game57, 5312-bore89 mm (3½ in)286.35HunterInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade Grade I
Game58, 5312-bore89 mm (3½ in)306.35HunterInvector-Plus Flush; removable; 3 tubes3.203 kg (7 lb 1 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade Grade I
Game59, 6012-bore89 mm (3½ in)306.35Mossy Oak Duck Blind3 tubes3.232 kg (7 lb 2 oz; catalogue, 30.0 in)USMODB action
Game61, 6012-bore89 mm (3½ in)286.35Mossy Oak Duck BlindInvector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USMODB action
Game62, 6012-bore89 mm (3½ in)266.35Mossy Oak Duck BlindInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USMODB action
Game63, 6012-bore76 mm (3 in)286.35Mossy Oak Duck BlindInvector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USMODB action
Game64, 6012-bore76 mm (3 in)266.35Mossy Oak Duck BlindInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USMODB action
Game65, 6612-bore76 mm (3 in)22Rifled Deer, Mossy Oak Break-Up Infinity3.26 kg (7 lb 3 oz; catalogue, 22.0 in)USMOINF action
Game67, 6812-bore76 mm (3 in)22Rifled Deer Stalker3.26 kg (7 lb 3 oz; catalogue, 22.0 in)USMatte Black action
Game69, 7012-bore76 mm (3 in)266.35UltimateInvector-Plus Flush; removable; 3 tubes3.203 kg (7 lb 1 oz; catalogue, 26.0 in)USMatte Nickel action; wood grade Grade III
Game71, 7012-bore76 mm (3 in)286.35UltimateInvector-Plus Flush; removable; 3 tubes3.26 kg (7 lb 3 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade Grade III
Game72, 7012-bore76 mm (3 in)306.35UltimateInvector-Plus Flush; removable; 3 tubes3.289 kg (7 lb 4 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade Grade III
Game7312-bore76 mm (3 in)26, 28, 306Hunter Grade 2Invector Plus; removable20103.1 kg (6 lb 13 oz; catalogue, 26 in)Nickel action
Game7312-bore89 mm (3½ in)26, 28, 306CompositeInvector Plus; removable20103.1 kg (6 lb 13 oz; catalogue, 26 in)
Game7312-bore89 mm (3½ in)26, 28, 306Camo Duck BlindInvector Plus; removable20103.1 kg (6 lb 13 oz; catalogue, 26 in)Mossy Oak Duck Blind action
Wildfowl
Wildfowl74, 7512-bore89 mm (3½ in)266.35Mossy Oak BottomlandInvector-Plus Flush; removable; 3 tubes3.118 kg (6 lb 14 oz; catalogue, 26.0 in)USMOBL action
Wildfowl76, 7512-bore89 mm (3½ in)286.35Mossy Oak BottomlandInvector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 28.0 in)USMOBL action
Wildfowl77, 7812-bore76 mm (3 in)266.35Mossy Oak Shadow Grass BladesInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USMOSGB action
Wildfowl79, 7812-bore76 mm (3 in)286.35Mossy Oak Shadow Grass BladesInvector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USMOSGB action
Wildfowl80, 7812-bore89 mm (3½ in)266.35Mossy Oak Shadow Grass BladesInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USMOSGB action
Wildfowl81, 7812-bore89 mm (3½ in)286.35Mossy Oak Shadow Grass BladesInvector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USMOSGB action
Wildfowl82, 8312-bore89 mm (3½ in)266.35Mossy Oak Shadow Grass HabitatInvector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USMOSGH action
Wildfowl84, 8312-bore89 mm (3½ in)286.35Mossy Oak Shadow Grass HabitatInvector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USMOSGH action
Wildfowl85, 8612-bore89 mm (3½ in)286.35Realtree Max-4Invector-Plus Flush; removable; 3 tubes3.147 kg (6 lb 15 oz; catalogue, 28.0 in)USRTM4 action
Wildfowl87, 8612-bore89 mm (3½ in)266.35Realtree Max-4Invector-Plus Flush; removable; 3 tubes3.118 kg (6 lb 14 oz; catalogue, 26.0 in)USRTM4 action
Wildfowl88, 8912-bore89 mm (3½ in)266.35Realtree Max-5Invector-Plus Flush; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USRTM5 action
Wildfowl90, 8912-bore89 mm (3½ in)286.35Realtree Max-5Invector-Plus Flush; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USRTM5 action
Wildfowl91, 9212-bore89 mm (3½ in)266.35Wicked Wing – A-TACS AUBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl93, 9212-bore89 mm (3½ in)286.35Wicked Wing – A-TACS AUBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl94, 9512-bore89 mm (3½ in)266.35Wicked Wing – Mossy Oak BottomlandBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl96, 9512-bore89 mm (3½ in)286.35Wicked Wing – Mossy Oak BottomlandBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl97, 9812-bore89 mm (3½ in)266.35Wicked Wing - Mossy Oak Shadow Grass BladesBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl99, 9812-bore89 mm (3½ in)286.35Wicked Wing - Mossy Oak Shadow Grass BladesBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl100, 9812-bore76 mm (3 in)266.35Wicked Wing - Mossy Oak Shadow Grass BladesBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl101, 9812-bore76 mm (3 in)286.35Wicked Wing - Mossy Oak Shadow Grass BladesBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl102, 10312-bore89 mm (3½ in)266.35Wicked Wing – Mossy Oak Shadow Grass HabitatBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl104, 10312-bore89 mm (3½ in)286.35Wicked Wing – Mossy Oak Shadow Grass HabitatBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl105, 10612-bore89 mm (3½ in)266.35Wicked Wing – Realtree Max-5Banded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl107, 10612-bore89 mm (3½ in)286.35Wicked Wing – Realtree Max-5Banded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl108, 10912-bore89 mm (3½ in)266.35Wicked Wing – Realtree TimberBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USBurnt Bronze Cerakote action
Wildfowl110, 10912-bore89 mm (3½ in)286.35Wicked Wing – Realtree TimberBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USBurnt Bronze Cerakote action
Wildfowl111, 112, 11312-bore89 mm (3½ in)266.35Wicked Wing Tungsten - Mossy Oak BottomlandBanded Invector-Plus Extended; removable; 3 tubes20203.175 kg (7 lb 0 oz; catalogue, 26.0 in)USTungsten Cerakote action
Wildfowl114, 112, 11312-bore89 mm (3½ in)286.35Wicked Wing Tungsten - Mossy Oak BottomlandBanded Invector-Plus Extended; removable; 3 tubes20203.232 kg (7 lb 2 oz; catalogue, 28.0 in)USTungsten Cerakote action
Wildfowl115, 11612-bore89 mm (3½ in)266.35Wicked Wing Tungsten – Mossy Oak Shadow Grass HabitatBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USTungsten Cerakote action
Wildfowl117, 11612-bore89 mm (3½ in)286.35Wicked Wing Tungsten – Mossy Oak Shadow Grass HabitatBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USTungsten Cerakote action
Wildfowl118, 7, 11912-bore89 mm (3½ in)266.35Wicked Wing Tungsten - Realtree Max-5Banded Invector-Plus Extended; removable; 3 tubes20203.175 kg (7 lb 0 oz; catalogue, 26.0 in)USTungsten Cerakote action
Wildfowl120, 7, 11912-bore89 mm (3½ in)286.35Wicked Wing Tungsten - Realtree Max-5Banded Invector-Plus Extended; removable; 3 tubes20203.232 kg (7 lb 2 oz; catalogue, 28.0 in)USTungsten Cerakote action
Wildfowl121, 12212-bore89 mm (3½ in)266.35Wicked Wing Tungsten – Realtree TimberBanded Invector-Plus Extended; removable; 3 tubes3.175 kg (7 lb 0 oz; catalogue, 26.0 in)USTungsten Cerakote action
Wildfowl123, 12212-bore89 mm (3½ in)286.35Wicked Wing Tungsten – Realtree TimberBanded Invector-Plus Extended; removable; 3 tubes3.232 kg (7 lb 2 oz; catalogue, 28.0 in)USTungsten Cerakote action
Sporting
Sporting124, 12512-bore76 mm (3 in)28SportingInvector-Plus Flush; removable; 5 tubes3.175 kg (7 lb 0 oz; catalogue, 28.0 in)USMatte Nickel action; wood grade Grade III
Sporting126, 12512-bore76 mm (3 in)30SportingInvector-Plus Flush; removable; 5 tubes3.203 kg (7 lb 1 oz; catalogue, 30.0 in)USMatte Nickel action; wood grade Grade III

Scroll for more columns.

All Purpose Hunter - Mossy Oak Break-Up Country14, 15. Game48, 49. A-TACS AU (Arid/Urban)16, 17. A-TACS AU (Arid/Urban)18, 17. Game50, 51. Hunter Maple19, 20. Hunter Maple21, 20. Hunter Maple22, 20. Game52, 53. Game54, 53. Game55, 53. Game56, 53. Game57, 53. Game58, 53. Wildfowl74, 75. Wildfowl76, 75. Game59, 60. Game61, 60. Game62, 60. Game63, 60. Game64, 60. Wildfowl77, 78. Wildfowl79, 78. Wildfowl80, 78. Wildfowl81, 78. Wildfowl82, 83. Wildfowl84, 83. Wildfowl85, 86. Wildfowl87, 86. Wildfowl88, 89. Wildfowl90, 89. Realtree Timber23, 24. Realtree Timber25, 24. Rifled Deer - Mossy Oak Break-Up Country26, 27. Game65, 66. Game67, 68. Sporting Carbon Fiber28, 29. Sporting Carbon Fiber30, 29. Sporting Golden Clays — AAAA Maple31, 32. Sporting Golden Clays — AAAA Maple33, 32. Sporting Golden Clays — Maple34, 35, 32. Sporting Golden Clays — Maple36, 37, 32. Sporting Golden Clays38, 39. Sporting Golden Clays40, 39. Sporting124, 125. Sporting126, 125. Stalker41, 42. Stalker43, 42. Stalker44, 42. Stalker45, 42. Game69, 70. Game71, 70. Game72, 70. Wildfowl91, 92. Wildfowl93, 92. Wildfowl94, 95. Wildfowl96, 95. Wildfowl97, 98. Wildfowl99, 98. Wildfowl100, 98. Wildfowl101, 98. Wildfowl102, 103. Wildfowl104, 103. Wildfowl105, 106. Wildfowl107, 106. Wildfowl108, 109. Wildfowl110, 109. Wildfowl111, 112, 113. Wildfowl114, 112, 113. Wildfowl115, 116. Wildfowl117, 116. Wildfowl118, 7, 119. Wildfowl120, 7, 119. Wildfowl121, 122. Wildfowl123, 122. Game73. Game73. Game73. One46. Black Gold46. Sporting Black Carbon Fiber46. Ultimate Ducks Composite47. Camo Max 547. Camo A-TACS47.

Identify and date

The serial number sits on the left side of the receiver, above the guard.127, 128 Browning’s serial numbers have separate fields for number, year and model, and the Maxus model code is 115.129, 130 In the year-letter key, ZM stands for 2010.131 Browning’s 2018 list of factories places the Maxus at Viana, Portugal; the barrel may read Made in Portugal or Assembled in Portugal, which Browning treats as meaning the same.132, 133, 134

WhereMarkings
Left receiver side, above guardSerial number127, 128
Barrel135
Right side of barrel-system specification136
Side and top rim of Constriction and notch code136
Barrel inscriptionMade in Portugal or Assembled in Portugal; Browning treats the two as meaning the same134, 133, 132

Browning serial date code

Two letters encode the last two digits of the year of manufacture. Browning gives this key for the Citori in 1976–1997 and from 1999, the Superposed in 1976–1986 and the Auto-5 in 1976–1997. The Superposed places the type code first, as in 213RT01001. The Auto-5 example 01001RT151 and the later Citori example 01001NN131 place the serial sequence first. The Superposed and Auto-5 examples denote 1976, and the Citori example denotes 1999.137, 138, 139, 140

CodeYear digit
Z1137
Y2137
X3137
W4137
V5137
T6137
R7137
P8137
N9137
M0137

Before you buy

  1. Check that the Speed Lock lever closes fully and its release button sits flush with the .6
  2. Match any extra barrel to the gun’s and class: Browning forbids swapping between 3-inch and 3½-inch classes or fitting a barrel from another Browning model.9
  3. Read the -system inscription on the barrel before buying tubes: Standard Invector, Invector Plus and Invector DS tubes do not interchange.136
  4. Identify the piston sleeve before separating the gas assembly: the aluminium sleeve is attached to the piston and the polymer sleeve is not.141
  5. Inspect the gas piston and magazine tube for carbon deposits; Browning prescribes solvent and a nylon brush, and forbids a steel brush or removing the piston’s internal spring.142
  6. On guns with a Dura-Touch coating, look for stickiness, peeling or bubbling, which Browning identifies as deterioration of the coating.143, 144

History

Browning introduced the Maxus in 2009.12 The 2010 catalogue listed Hunter Grade 2, Composite and Camo Duck Blind configurations.73 In 2020 Browning offered Wicked Wing Tungsten SHOT Show Specials that paired Tungsten Cerakote with Realtree Max-5 or Mossy Oak Bottomland.7, 112

The Maxus II followed in 2021 with a conventional magazine cap in place of the original latch.145, 146 It kept the Power Drive gas system and added a soft cheekpiece, a larger bolt handle and a redesigned guard.145 The original Maxus is no longer in production.13

DateChangeObservable feature
2020Wicked Wing Tungsten offered as SHOT Show Specials in Realtree Max-5 and Mossy Oak Bottomland.7, 112Tungsten Cerakote, named camouflage, oversize bolt release and extended Goose Band tubes.
